- Stock: In Stock
- Model: KEW-4105A Kyoritsu

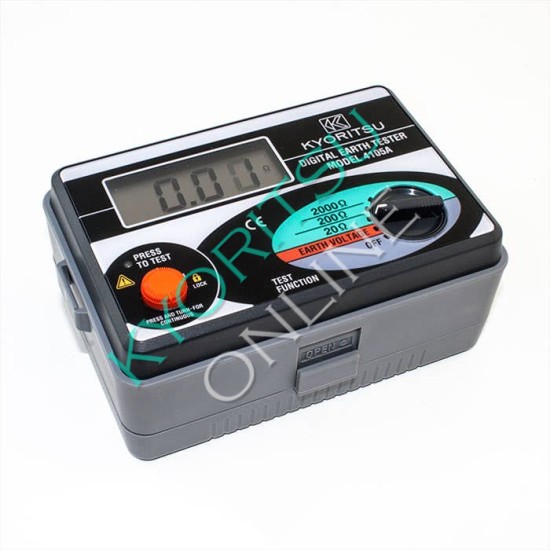

Buy Now KEW-4105A Kyoritsu Digital Earth Tester 0 - 2000Ω At Best Price In Pakistan 2025
Features:
• Dust and drip proof.(designed to IEC 529 IP54)
• In addition to the facility for precision measurement,
test leads for simplified two wire measuring system also supplied as standard
accessories.
(Unit can be hung from the neck for simplified measurement)
• Designed to meet IEC 61010-1 safety standard.
• Capable of measuring earth voltage.
• Automatic warning when resistance of auxiliary earth
spikes is in excess of tolerance.
• Small and lightweight. Shock resistant new case material.
• 2mA measuring current permits earth resistance tests
without tripping earth leakage current breakers in the circuit under test.
Specification:
Measurement ranges | Earth Resistance: 0 - 2000Ω |
Accuracy | Earth Resistance: ±2%rdg0.1Ω(20Ω) / ±2%rdg±3dgt(200/2000Ω) |
Overload protection | Earth Resistance: 280V AC for 10 seconds |
Applicable standards | IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557 |
Power source | R6 (AA) (1.5V) × 6 |
Dimensions | 105(L) × 158(W) × 70(D)mm |
Weight | 550g approx. |

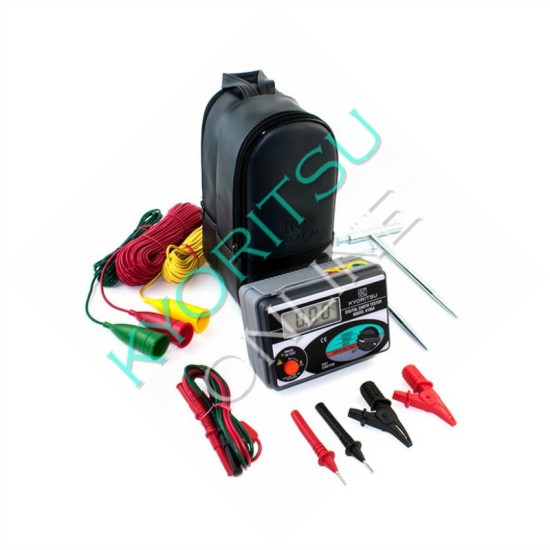

Included Accessories | 7095A (Earth resistance test leads [red-20m, yellow-10m,
green-5m/1set]) |
